Sugatsune provides custom designed OEM torque hinges.
As a manufacturer and developer of torque hinges, Sugatsune can provide top quality solutions.
Many different custom options available
Option 1 Extra functionality
Torque adjustment
Torque can be adjusted by rotating a screw.
One-way torque
Torque only activates in one direction. There is no resistant force when opening or lifting up.
Detent
Close to closing radius, torque resistance is removed to prevent springback.
Heat resistant
Keeps 80% of its torque in hot environments. Retains full torque strength at room temperature.
Water-proof (Available for exterior use)
The main body is made from stainless steel, the rotating shaft is covered with an O-ring, preventing water and dust ingress.
Antibacterial
Covered with an antibacterial coating, also uses antibacterial grease
Option 2 Torque mechanisms
Torque hinges operate by creating friction in the movable shaft.
By relying on Sugatsune current products and engineering knowhow, you will be able to find the most appropriate solution for your project.
Disk mechanism
Friction is generated when movable disks sandwiching a fix disk are moved.
Curl mechanism
Friction is generated when a shaft inside a rolled spring sheet is rotated.

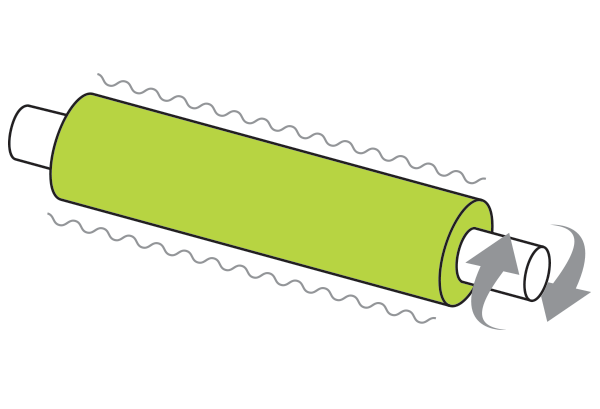

Pipe structure
A shaft press-fitted into a plastic pipe is rotated.
Option 3 Hinge types
Butt hinges
Lift-off hinge
Back-mount concealed hinge
Dual axis hinge
Special types
Option 4 Materials
Stainless steel
Zinc alloy
Aluminium alloy
Resin
We are your partners at every stage
Sugatsune can take your product requirements and engineer the necessary product designs.
With a great deal of successes and a large amount of experience, we are able to create all kinds of different torque hinges.
Please feel free to search through our product catalogue. If you need a change in our sizes, or the dimensions of installation holes, please feel free to contact a sales representative.
